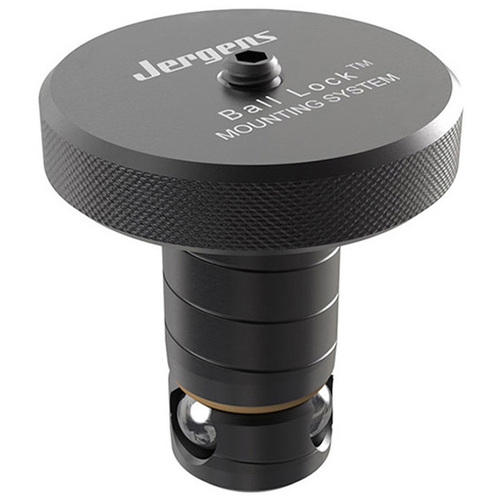

Shank, 20 mm Shank Diameter × 1″ Fixture Plate Thickness, 4340 Steel, Black Oxide Finish
| Type | Shank | Head Diameter | 1-3/4″ |
| System Compatibility | Ball Lock® | Length Under Head | 1.78″ |
| Fixture Plate Thickness | 1″ | Hex Wrench Size | 1/8″ |
| Shank Diameter | 20 mm | Max Holddown Force | 3,000 lbs |
| Material | 4340 Steel | Recommended Screw Torque | 3 ft-lbs |
| Finish | Black Oxide | Repair Kit Part Number | 49902 |
| Head Thickness | 0.38″ |
Product Features
| Remarks | •Material: Shank/Bushing, 4340. •Finish: Black Oxide. •Heat Treat: •Shanks, RC 40-45. •Bushings, RC 50-54. •Liners, RC 62-64. •Operating temperature range: -30°C to 200°C. | Country of Origin | USA |
Shipping Info
Package Weight
.500
