| Type | Xpansion Clamp | Contact Length | 1.060″ |
| Thread Size | 5/8″-11 | Minimum Diameter | 1.150″ |
| Model No | 31350 | Flange Diameter | 2.972″ |
| Clamp Height | 1 1/4″ | Flange Thickness | 0.310″ |
| Holding Force | 10,000 lbs | Overall Height | 1.560″ |
| Outer Edge Screw | 10-32 on 2.515 BHC | Thread Length | 0.790″ |
| Style | Inch | Diameter | 2.030″ |
Product Features

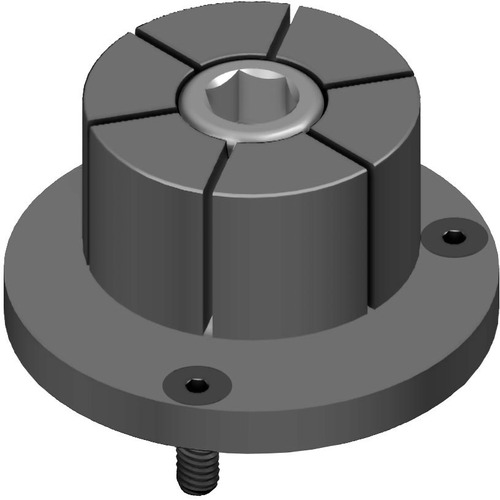

| Remarks | •The ID Xpansion clamp is the ideal way to hold parts on an inside diameter for multiple machining on vertical or horizontal machining centers •It can also be used as an expanding mandrel on a lathe •The flange diameter of the clamp is held to a close tolerance for precision locating in a machined pocket on work cubes and fixture plates •One of the benefits of these low profile clamps is holding many lathe parts, for secondary machining, on one compact set up •They are quickly tightened with a hex key, torque driver or can be mated to hydraulic pull cylinders for automation. | Country of Origin | USA |
Shipping Info
LocalField10
0
Package Length
4.70000
Package Width
4.40000
Package Height
2.40000
Package Weight
1.8
