MGCH 08

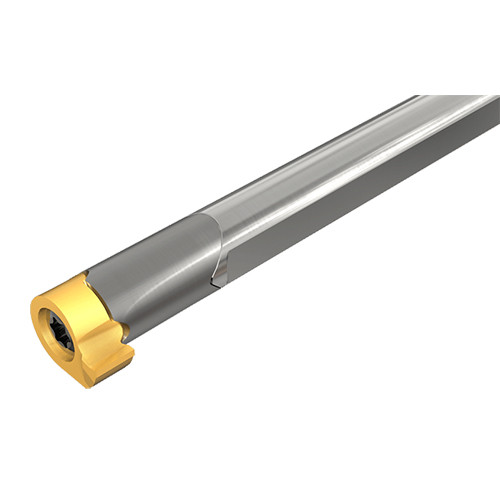

CHAMGROOVE solid carbide bars for internal grooving, turning and threading, DMIN .315″.

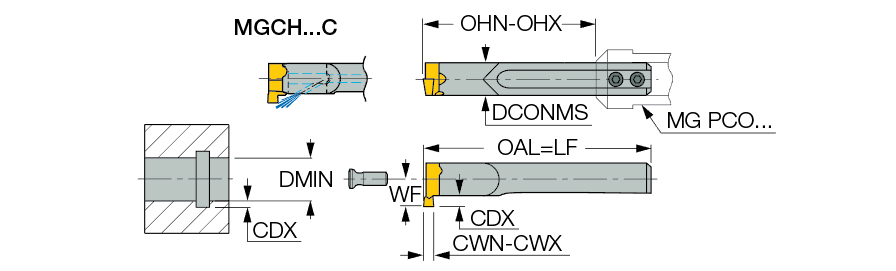

| Cutting Width Minimum (CWN) | 0.02″ | Application | | Int. Back Boring and Profiling | Int. Boring and Profiling | Int. Groove & Turn | Int. Grooving | Threading (Int.) | |
| Cutting Width Maximum (CWX) | 0.197″ | Body Material | Carbide |
| Overall Length (OAL) | 2.992″ | Tool Type | Indexable Turn & Groov Tools |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Measurement Type | Inch |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | CHAMGROOVE solid carbide bars for internal grooving, turning and threading, DMIN .315″. | Country of Origin | Israel |
| Remarks | The same tool applies on right and left machining |
Shipping Info
LocalField10
0
Package Length
3.50000
Package Width
2.00000
Package Height
.59200
Package Weight
0.152
