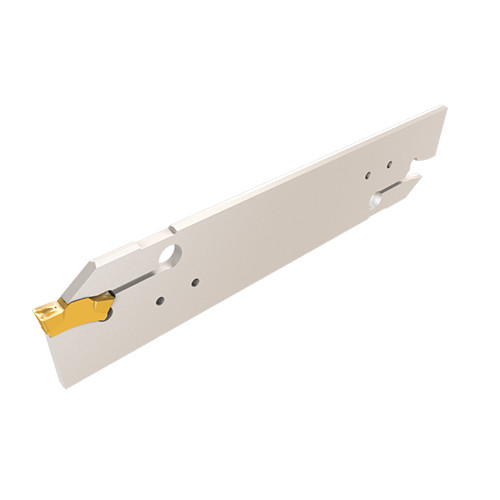

TGHN 32-3D
Double-ended blades carrying TOP-GRIP utility grooving and turning inserts.

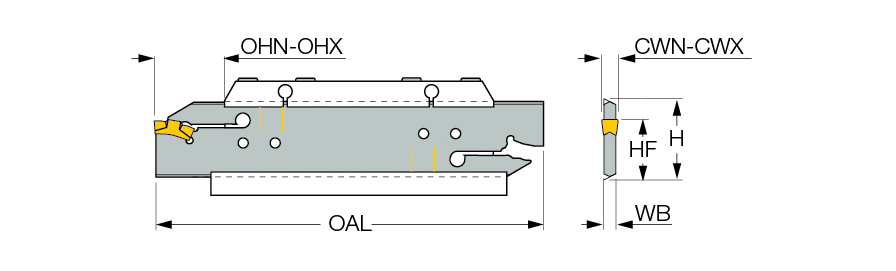

| Cutting Width Minimum (CWN) | 0.118″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | |
| Cutting Width Maximum (CWX) | 0.118″ | Body Material | Steel |
| Shank Height (H) | 1.26″ | Tool Type | Turn-Groove Tools |
| Overall Length (OAL) | 5.906″ | Measurement Type | Inch |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | Double-ended blades carrying TOP-GRIP utility grooving and turning inserts. | Country of Origin | Israel |
| Remarks | Use the drilled holes on blade for min. and max. overhang Grooving depthis limited by the insert |
Shipping Info
Package Weight
0.209
