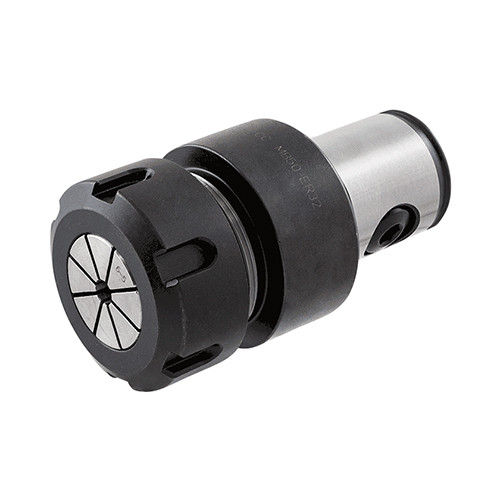

CC MB25 ER20M
DIN 6499 ER collet chuck with the MB modular boring connection system.

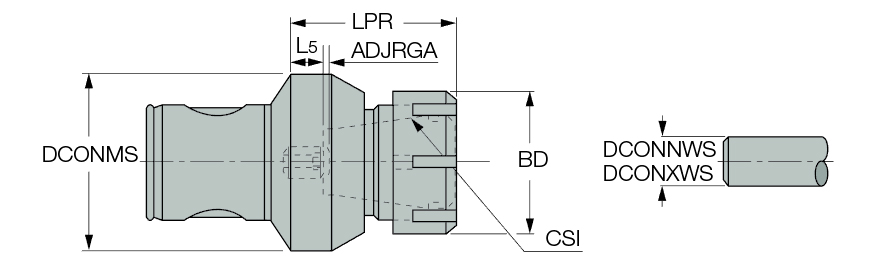

| Shank Size (SS) | MB25 | Tool Type | MB General Tools Holders |
| Connection Size (CSI) | ER20 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.039″ |
| Body Diameter (BD) | 1.102″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.512″ |
| Protruding Length (LPR) | 1.575″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.984″ | Body Material | Steel |
Product Features
| Family Description | DIN 6499 ER collet chuck with the MB modular boring connection system. | Country of Origin | Italy |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.319
