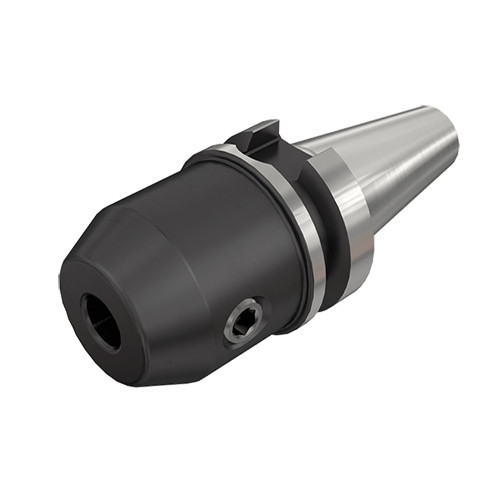

BT50 FC EM40X115

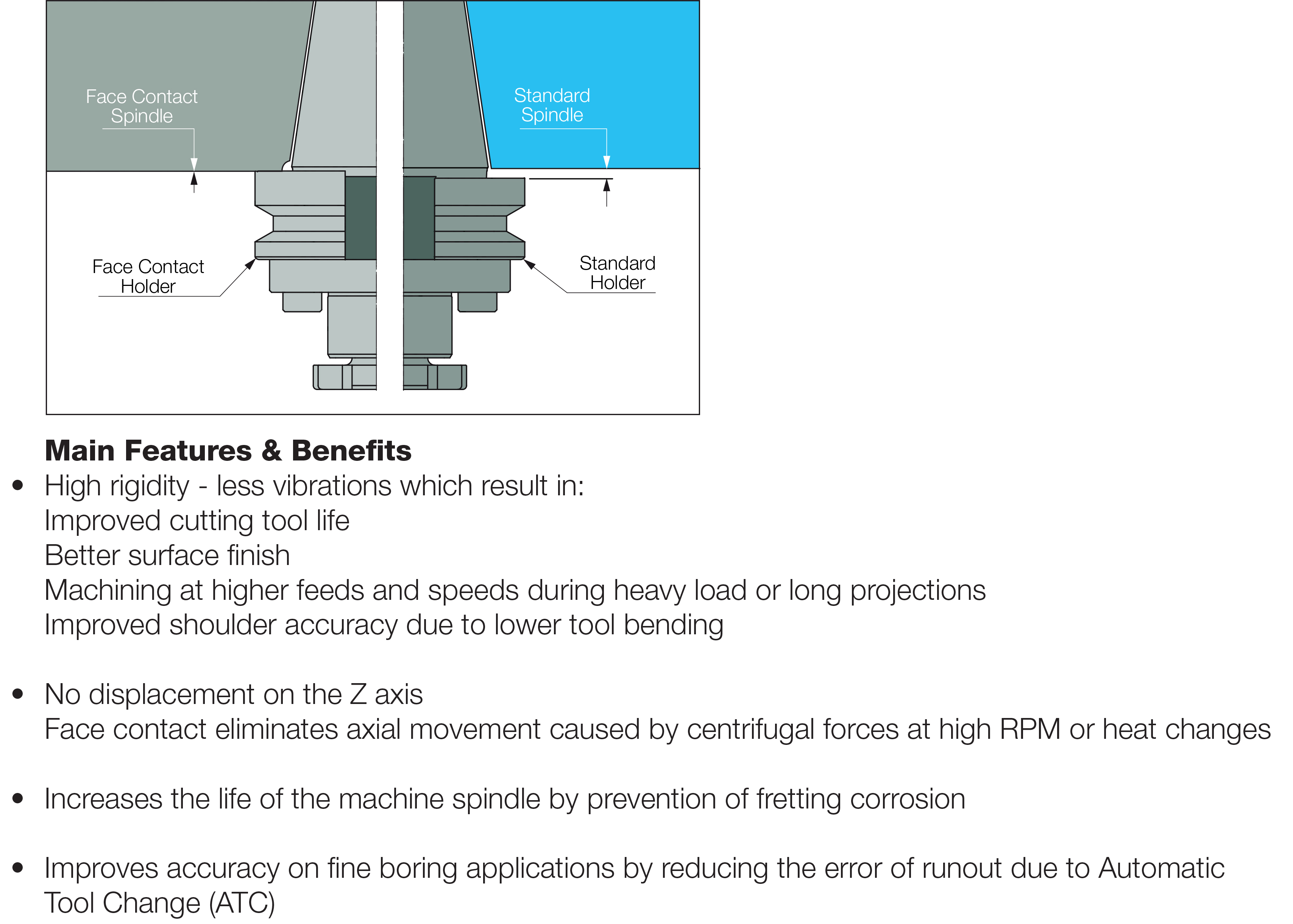

DIN1835 Form B endmills with BT MAS-403 face contact AD tapered shanks.

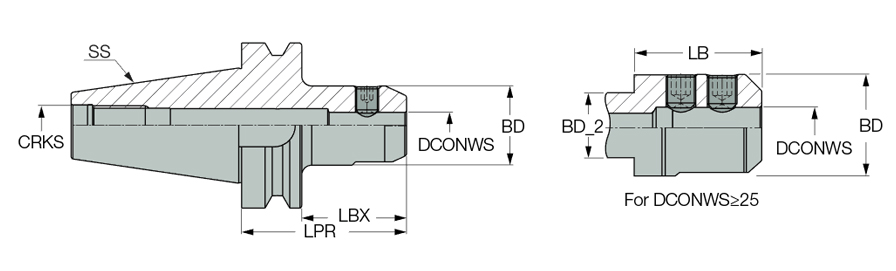

| Connection Size (CSI) | R8 | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 40 mm | Shank Size (SS) | 50 |
| Body Diameter (BD) | 90 mm | Tool Type | BT |
| Protruding Length (LPR) | 115 mm | Body Material | Steel |
| Overall Length (OAL) | 218.3 mm | Connection Code Machine Side (CCMS) | BT |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | DIN1835 Form B endmills with BT MAS-403 face contact AD tapered shanks. | Country of Origin | Italy |
| Remarks | For adaptation details, click on More Info. |
Shipping Info
Package Weight
14.339
