C4 SEM16X32 C

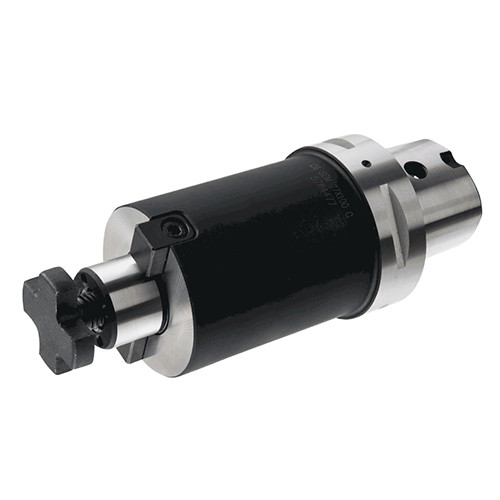

Shell Mill Holder; 40 mm Shank Dia. ; 16 mm Hole Dia. ; 38 mm Body Dia. ; 32 mm Body Length ; 40 Shank Size ; CAT Shank
| Connection Diameter Machine Side (DCONMS) | 40 mm | Hex Size | 5/8″ |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Clamping Length Workpiece Side (LSCWS) | 17 mm |
| Shank Size (SS) | 40 | Material | Steel |
| Functional Length (LF) | 32 mm | Shell Mill Pilot Size | 1-1/2″ |
| Body Length (LB) | 32 mm | Flange Diameter (DF) | 3.380″ |
| Body Diameter (BD) | 38 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Shank Standard | CAMFIX | Measurement Type | Metric |
| Shank Type | CAT | Body Material | Steel |
| Overhang Length (L2) | 6″ | Protruding Length (LPR) | 6″ |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | ISO 3937 shell mill holders with coolant holes and CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks | Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.928
