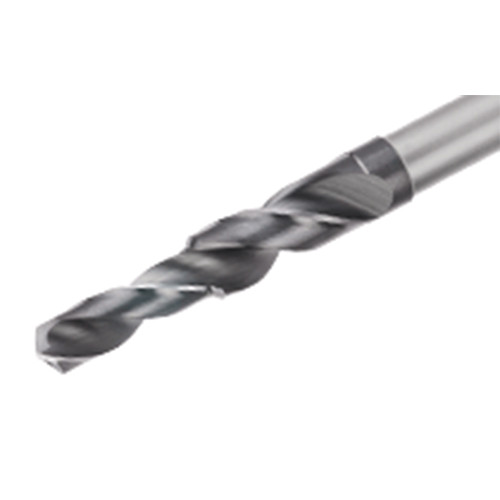

SCDT 025-009-060-M3 IC908
Pre-thread solid carbide drills with coolant holes

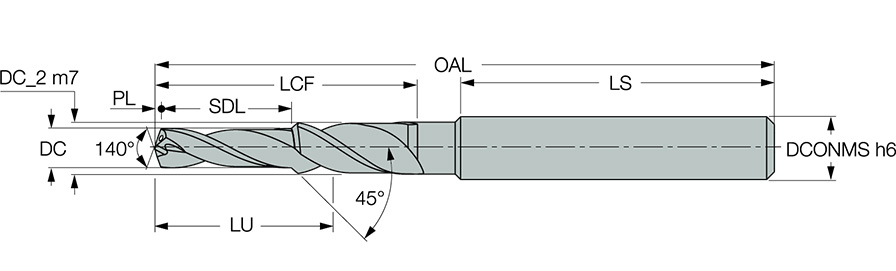

| Drill Bit Size / Cutting Diameter (DC) | 2.5 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.5 mm | Tool Type | solid carbide Drills |
| Length Group | 3xD | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Series/List # | 2464 |
| Application | | Chamfering | Drilling | | Usable Length (LU) | 16 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 20 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 62 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 61.55 mm | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Body Material | Carbide |
| Shank Length (LS) | 36 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Shank Diameter Tolerance (TCDMM) | h6 |
| Shape | Solid Carbide |
Product Features
| Family Description | Pre-thread solid carbide drills with coolant holes | Country of Origin | Italy |
Shipping Info
Package Weight
0.044
