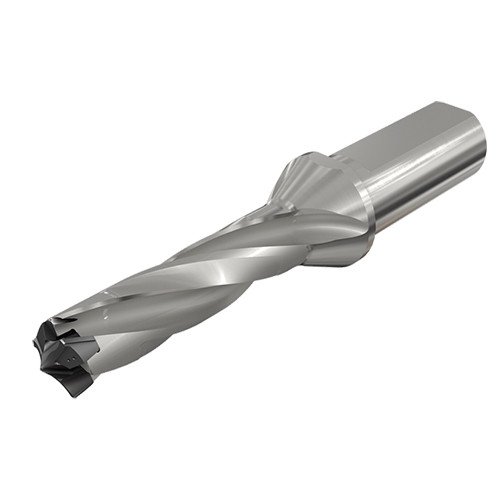

D3N 210-063-25A-3D
Exchangeable head 3 flute drills with coolant holes and one flat shank, drilling depth 3xD

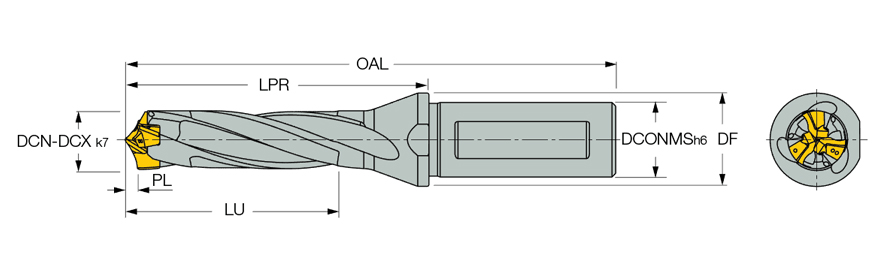

| Cutting Diameter (DC) | 21 mm | Shank Length (LS) | 56 mm |
| Usable Length (LU) | 67.55 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Master Insert Identification (MIID) | H3P 210 |
| Insert Seat Size Code (SSC) | 21 | Point Length (PL) | 4.55 mm |
| Cutting Diameter Minimum (DCN) | 21 mm | Series/List # | STAW |
| Cutting Diameter Maximum (DCX) | 21.9 mm | Angle | 140 Degrees |
| Protruding Length (LPR) | 106.3 mm | Body Material | Steel |
| Functional Length (LF) | 101.75 mm | Flange Diameter (DF) | 32 mm |
| Overall Length (OAL) | 162.3 mm | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Exchangeable head 3 flute drills with coolant holes and one flat shank, drilling depth 3xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.941
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
