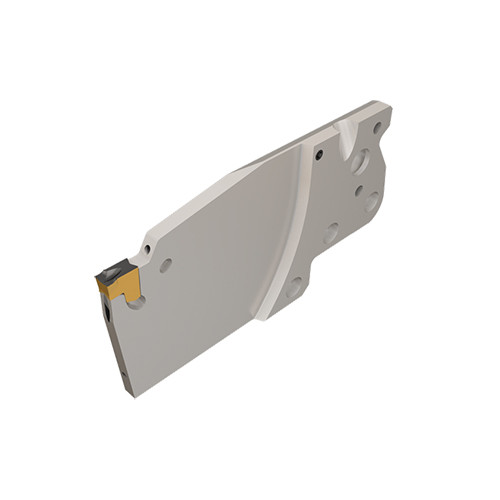

TAGPAD-XL 3L-D52-JHP
Extra long parting and grooving adapters with channels for high-pressure coolant carrying TANG-GRIP inserts

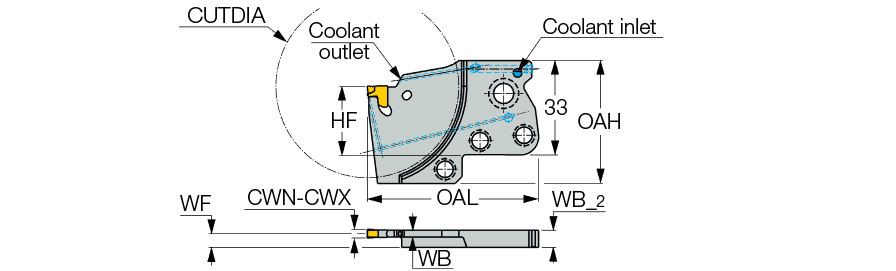

| Body Width (WB) | 0.094″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.11″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 0.138″ | Work Piece Parting Diameter Maximum (CUTDIA) | 2.047″ |
| Overall Length (OAL) | 2.102″ | Cutting Direction (HAND) | Left Hand |
| Overall Height (OAH) | 1.693″ | Measurement Type | Inch |
| Cutting Position | External | Body Width_2 (WB_2) | 0.236″ |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 2.434″ |
| Shank Standard | Square |
Product Features
| Family Description | Extra long parting and grooving adapters with channels for high-pressure coolant carrying TANG-GRIP inserts | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Weight
0.14
