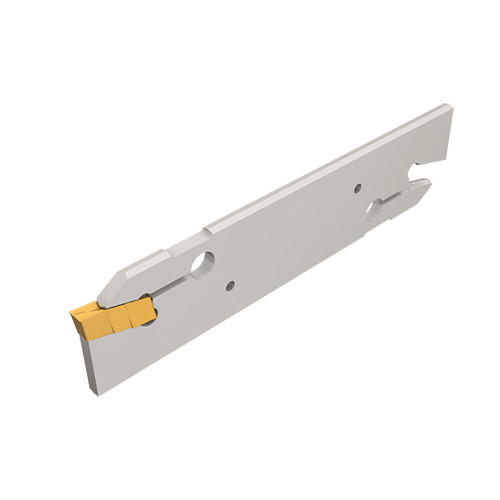

CGHN 32-4D
Double-ended blades for external grooving and turning.

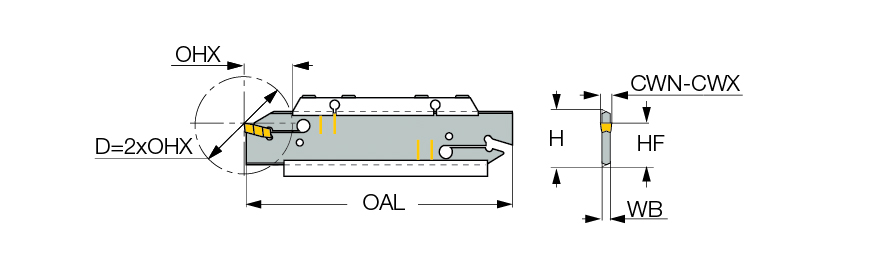

| Shank Height (H) | 1.26″ | Shank Standard | Square |
| Body Width (WB) | 0.126″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.138″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 0.197″ | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 5.906″ | Measurement Type | Inch |
| Cutting Position | External | Body Width_2 (WB_2) | 0.126″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Threading (Ext.) Groove Turn T | | Tool Assembly Length (LTA) | 1.831″ |
| Number of Pocket (NOP) | 2 |
Product Features
| Family Description | Double-ended blades for external grooving and turning. | Country of Origin | Israel |
| Remarks | Use the yellow lines on blade for min. and max. overhang When using TIP inserts, toolholder seat needs to be modified according to insert profile to ensure clearance When using a double-ended insert, grooving depth is limited by the insert When using GIVR/L inserts, tool holder's seat needs to be modified |
Shipping Info
LocalField10
0
Package Weight
0.26
Related Documentation

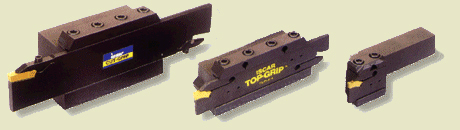

Adjustable blades for external grooving and turning. For insert width range 2.8 to 6.4 mm. Can be mounted on any standard block with the same height (B).
