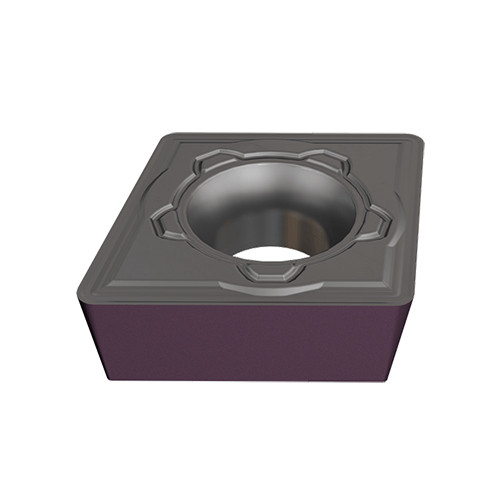

CCMT 3-2-M3M IC6015
80° rhombic 7° positive flank inserts, first choice for machining stainless and low carbon steel. Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life.
| Applicable Material | | Stainless Steel | | Min D.O.C. | 0.031″ |
| Application | | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Style | CCMT | Min. Turning Feed (ft(min)) | 0.0039 ″/rev |

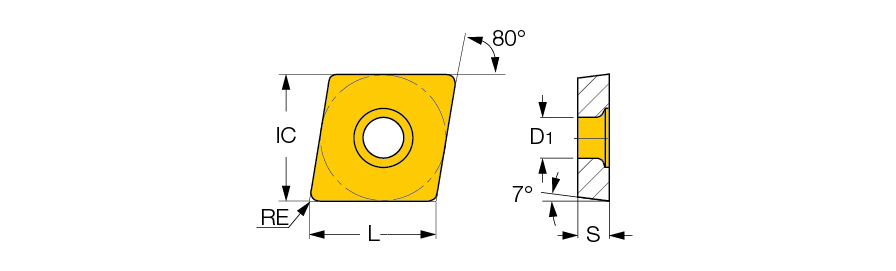

| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Size | 09T | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.382″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.156″ | Chip Breaker Type | M3M |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | TiCN+Al2O3+TiN | Series/List # | ISOI |
| Grade | IC6015 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.173″ | Model No | 8866423 |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | 80° rhombic 7° positive flank inserts, first choice for machining stainless and low carbon steel. Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.01
