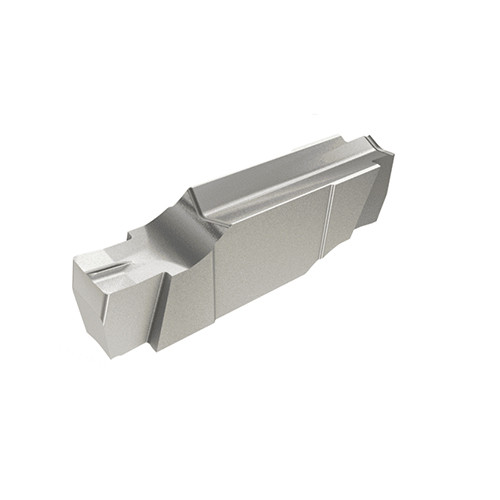

GIPI 1.96-0.10 IC808
Precision inserts for internal grooving and recessing. Double-ended, P-type chipformer, medium feeds, min. bore .787″.
| Cutting Width (CW) | 0.077″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.004″ | Max. Grooving Feed (fg(max)) | 0.0024 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Overall Length (OAL) | 0.618″ | Chip Breaker Type | P |
| Insert Length (INSL) | 0.618″ | Tool Type | Groove-Turn Precision Inserts |
| Cutting Depth Maximum (CDX) | 0.098″ | Angle | 12 Degrees |
| Cutting Edge Material | Carbide | Minimum Bore Diameter (DMIN) | 1.181″ |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Inch |
| Grade | IC808 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Width Tolerance (+/-) (CWTOL) | 0.0008″ |
| Application | | Int. Grooving (side limit) | | Insert Width (W1) | 0.087″ |
Product Features
| Family Description | Precision inserts for internal grooving and recessing. Double-ended, P-type chipformer, medium feeds, min. bore .787″. | Country of Origin | Israel |
| Remarks | The tool pocket should be modified DMIN for internal application=.787 |
Shipping Info
LocalField10
0
Package Weight
0.007
