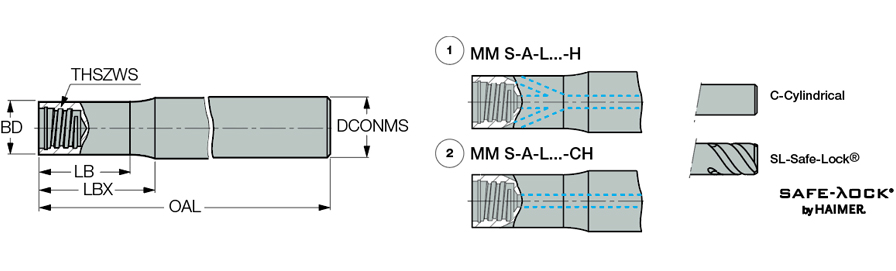

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T10 | Body Length (LB) | 0.8″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Measurement Type | Inch |
| Overall Length (OAL) | 4″ | Rotational Speed Maximum (RPMX) | 35730 Rev/min |
| Body Length Maximum (LBX) | 0.89″ | Body Material | Carbide |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
| Body Diameter (BD) | 0.602″ |
Product Features
| Family Description | MULTI-MASTER, stepped cylindrical shanks for solid carbide milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes. | Country of Origin | Israel |
| Remarks | For adaptation click on More Info Do not apply lubricant to the threaded connection |
