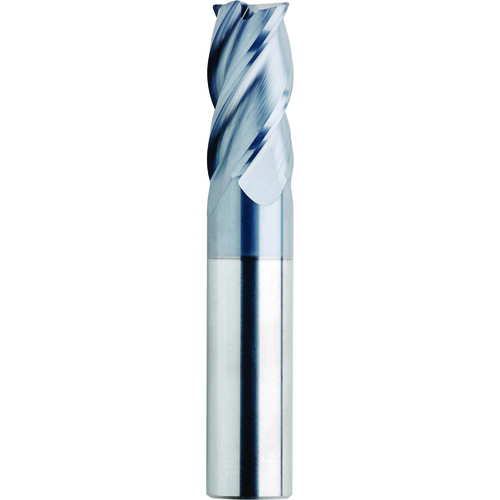

5981 VP2 5/8″ .030 CR 4F
| Cutting Diameter (DC) | 5/8″ | Tool Type | Single End |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Length Group | Regular |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 3-1/2″ | Style | Finishing |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.625″ |
| Coating | AlTiCrN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 5981 |
| Flute Helix Angle (FHA) | Variable | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Corner Radius | Single / Double End | Single End |
| Usable Length (LU) | 1-1/4″ | Center Cutting | Yes |
| Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Trade Name | VP-2 Mill |
| Corner Radius (RE) | 0.03″ |
Product Features
| Country of Origin | USA |
Shipping Info
LocalField10
0
Package Length
3.12500
Package Width
.75000
Package Height
.75000
Package Weight
0.52
