GD-DHL 1.125X36.97-I1.5
Indexable Insert Drill; 1-1/8″ Dia. × 31.4961″ LU × 1-1/2″ Shank Dia. × 37.15″ OAL ; Steel

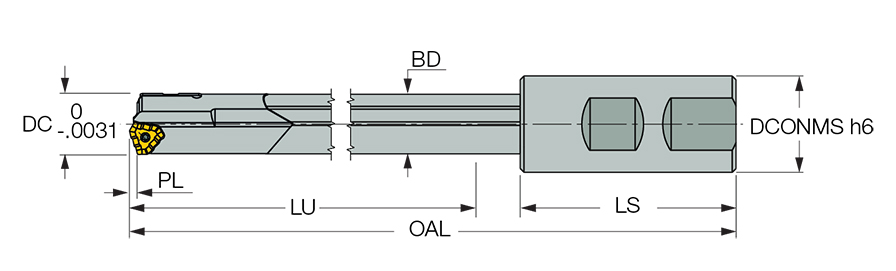

| Cutting Diameter (DC) | 1-1/8″ | Overall Length (OAL) | 37.15″ |
| Usable Length (LU) | 31.4961″ | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Gundrills | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Master Insert Identification (MIID) | TOGT 1304.. |
| Tool Type | Deep Hole / Gun Drill | Body Material | Steel |
| Shank Length (LS) | 2.717″ | Decimal Equivalent | 1.125″ |
Product Features
| Family Description | Gundrills carrying the TOGT indexable inserts, with 3 chip splitting cutting edges and a wiper for high hole surface quality and high feed. | Country of Origin | Japan |
| Remarks | For inquiry form, pad and driver selection, click on More Info Note: Gundrills can be supplied with up to 95 length on request. Inserts and guide pads to be ordered separately (not included with the tools). Preventative measures: Do NOT operate the deep hole drill at full speed before engaging the guide hole. Enter the guide hole slowly at a speed of 50 - 100 rpm. |
