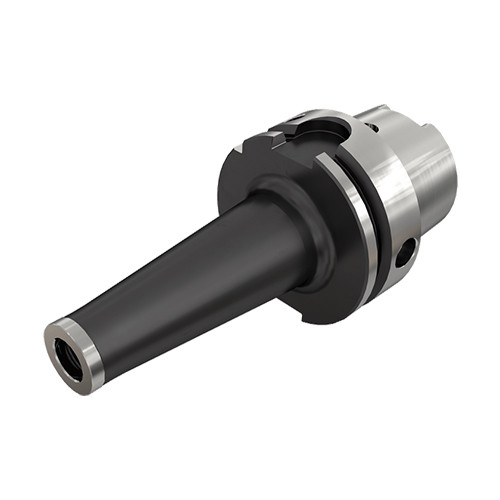

HSKA100ODP16X87
TungFlex modular tooling system with HSK-A shank

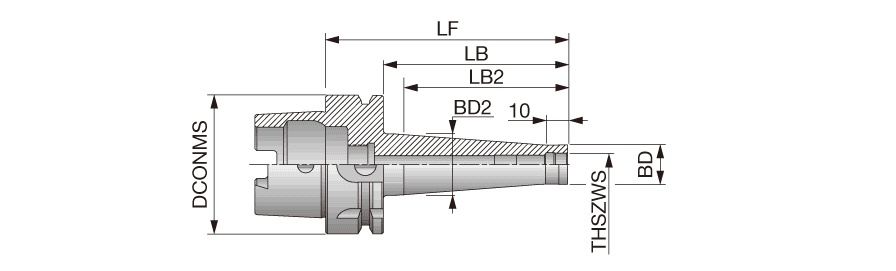

| Shank Size (SS) | 100. | Tool Type | HSK |
| Body Length (LB) | 2.283″ | Nose Diameter | 5.394″ |
| Body Diameter (BD) | 1.142″ | Overall Length (OAL) | 3.425″ |
| Connection Diameter Machine Side (DCONMS) | 3.937″ | Measurement Type | Inch |
| Application | | Face contact interface | | Body Material | Steel |
| Body Length_2 (LB_2) | 1.969″ |
Product Features
| Family Description | TungFlex modular tooling system with HSK-A shank | Country of Origin | ITALY |
Shipping Info
Package Weight
4.409
