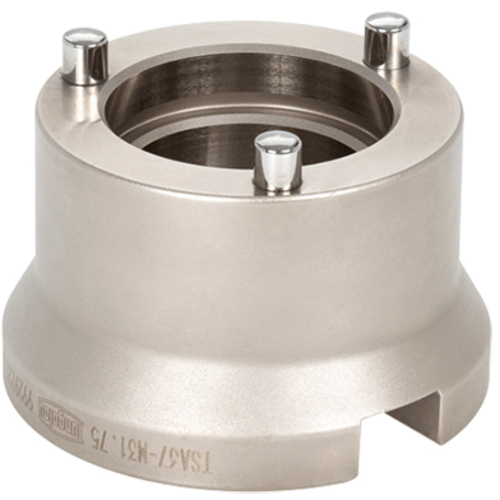

TSA37-M31.75
Adapter for TSV/TSW slot mill head

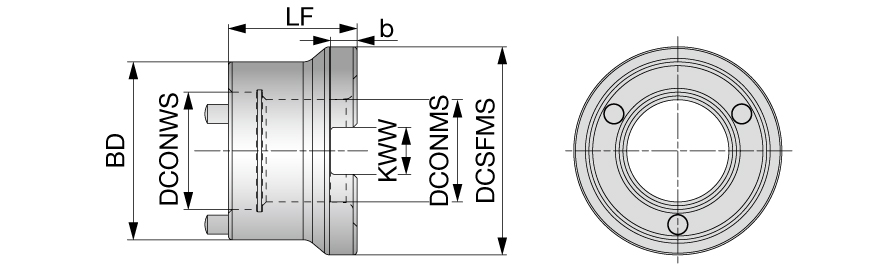

| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Application | | Slot Milling | |
| Body Diameter (BD) | 55 mm | Measurement Type | Metric |
| Overall Length (OAL) | 39 mm | Body Material | Steel |
Product Features
| Family Description | Adapter for TSV/TSW slot mill head | Country of Origin | JAPAN |
| Remarks | For how to assemble the cutter body to the adapter, click on "More Info". *Note : Dedicated wrench is sold separately. If coolant isn't supplied from the end of the arbor inlay,the center bolt corresponding to the adaptor is essential for coolant supplying. |
Shipping Info
Package Weight
0.000
Related Documentation

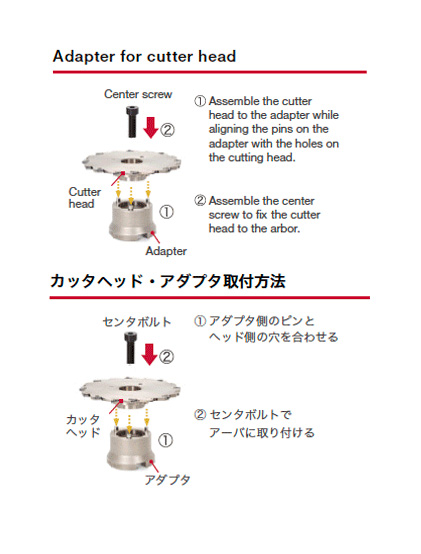

[Adapter for cutter head] @(1) Assemble the cutter head to the adapter while aligning the pins on the adapter with the holes on the cutting head. @(2) Assemble the center screw to fix the cutter head to the arbor.
