| Cutting Diameter (DC) | 0.188″ | Grade | IM100 Uncoated |
| Connection Diameter Machine Side (DCONMS) | 0.188″ | Tool Type | Single End |
| Depth of Cut Maximum (APMX) | 3/4″ | Length Group | Long |

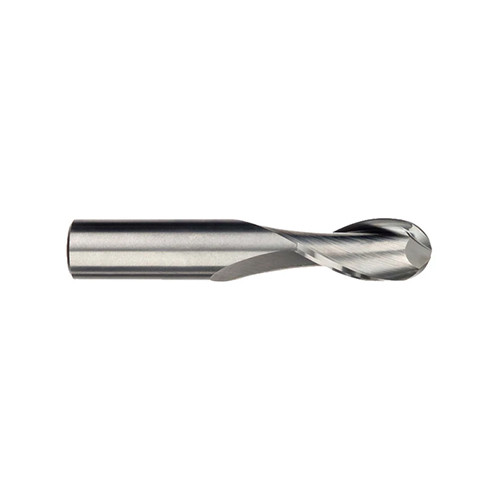

| Overall Length (OAL) | 2-1/2″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Decimal Equivalent | 0.188″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | E12-BN |
| Shank Type | Round |
Product Features
| Country of Origin | Usa |
Shipping Info
LocalField10
0
Package Weight
0.030
