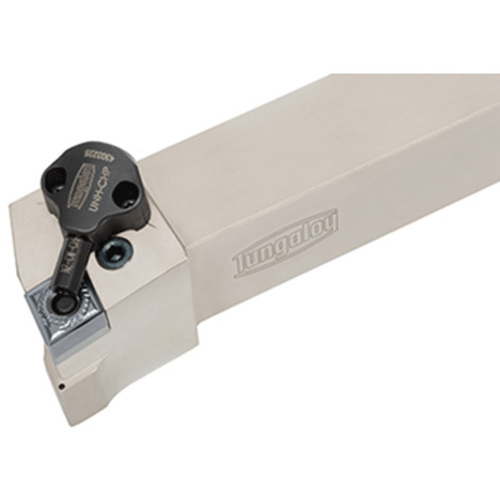

PCLNL2020K12-CHP
Lever lock type toolholder with 95 deg approach angle, for negative 80 deg rhombic inserts, with channels for high pressure coolant

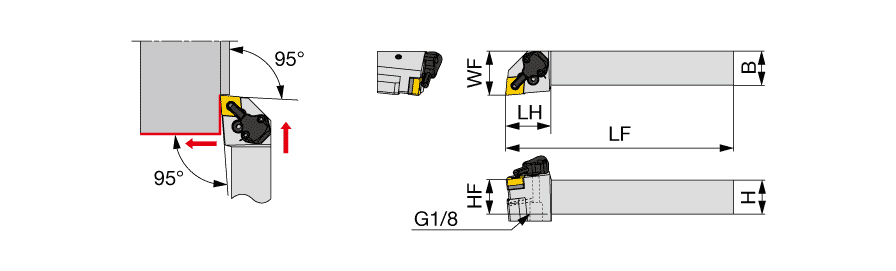

| Shank Height (H) | 20 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 20 mm | Master Insert Identification (MIID) | CNMG120408 |
| Overall Length (OAL) | 125 mm | Application | | For 80deg Rhombic insert | |
| Functional Length (LF) | 125 mm | Body Material | Steel |
| Head Length (LH) | 33 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 32 mm | Measurement Type | Metric |
Product Features
| Family Description | Lever lock type toolholder with 95 deg approach angle, for negative 80 deg rhombic inserts, with channels for high pressure coolant | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
1.230
