PCLNR2020

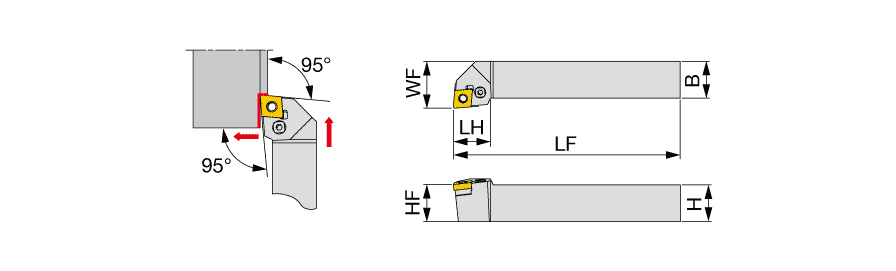

Lever lock type toolholder with 95 deg approach angle, for negative 80 deg rhombic inserts
| Shank Height (H) | 20 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 20 mm | Master Insert Identification (MIID) | CNMG120408 |
| Overall Length (OAL) | 125 mm | Application | | For 80deg Rhombic insert | |
| Functional Length (LF) | 125 mm | Body Material | Steel |
| Head Length (LH) | 28 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 25 mm | Measurement Type | Metric |
Product Features
| Family Description | Lever lock type toolholder with 95 deg approach angle, for negative 80 deg rhombic inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.917
