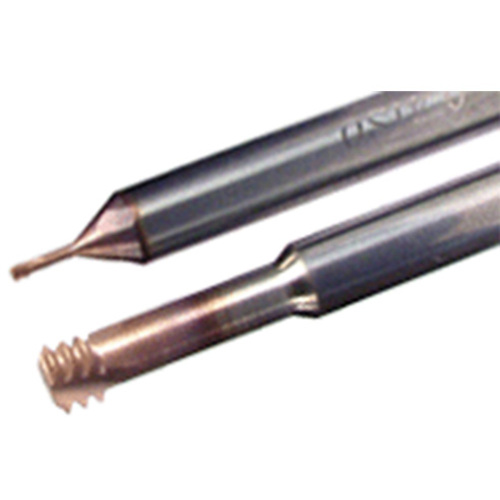

MTECS03015C672UN AH725
Small diameter solid carbide UN profile threading mills. High cutting speeds, short cycle time, low cutting forces due to the short threading contact resulting in accurate and parallel thread.

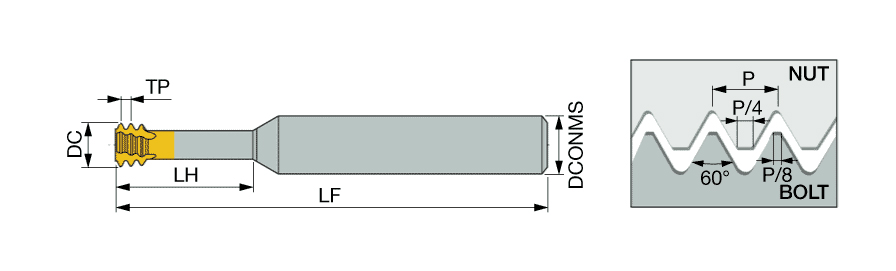

| Connection Diameter Machine Side (DCONMS) | 0.118″ | Threads per Inch Minimum (TPIN) | 72 |
| Cutting Diameter (DC) | 0.0571″ | Threads per Inch Maximum (TPIX) | 72 |
| Functional Length (LF) | 1.535″ | Cutting Edge Material | Carbide |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Coating | TiAlN | Grade | AH725 |
| Application | | Int. Thread Milling | | Tool Type | Solid carbide thread mills |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Body Material | Carbide |
Product Features
| Family Description | Small diameter solid carbide UN profile threading mills. High cutting speeds, short cycle time, low cutting forces due to the short threading contact resulting in accurate and parallel thread. | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.000
