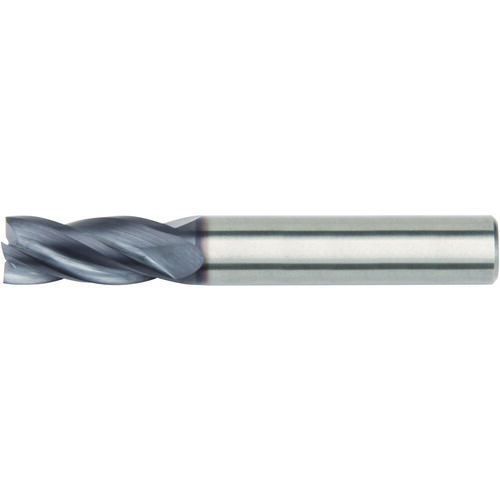

| Cutting Diameter (DC) | 3/16″ | Flute Helix Angle (FHA) | 30 Degrees|CW |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 3/4″ | End Shape | Square |
| Overall Length (OAL) | 2-1/2″ | Usable Length (LU) | 3/4″ |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 0″ |
| Coating | AlTiN | Decimal Equivalent | 0.1875″ |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | Germany |
Shipping Info
LocalField10
0
Package Length
3.20800
Package Width
.50500
Package Weight
0.066
