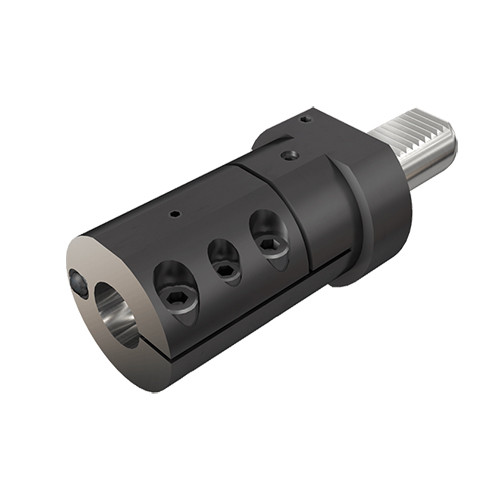

VDI50 AV-D25-JHP
VDI holders for Anti-Vibration tools

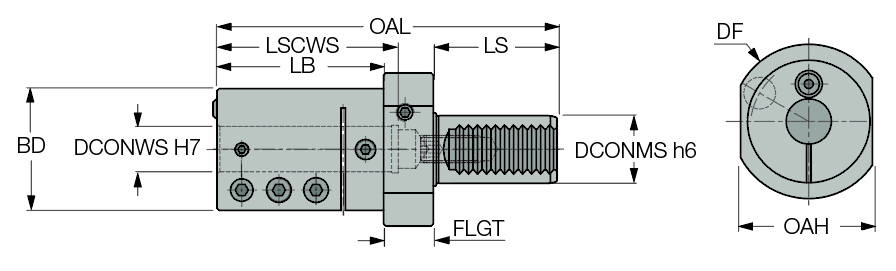

| Connection Diameter Machine Side (DCONMS) | 50 mm | Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 25 mm | Shank Length (LS) | 78 mm |
| Clamping Length Workpiece Side (LSCWS) | 106 mm | Flange Diameter (DF) | 98 mm |
| Body Diameter (BD) | 59 mm | Overall Height (OAH) | 70 mm |
| Body Length (LB) | 90 mm | Overall Length (OAL) | 198 mm |
| Measurement Type | Metric |
Product Features
| Family Description | VDI holders for Anti-Vibration tools | Country of Origin | China |
Shipping Info
Package Weight
9.114
