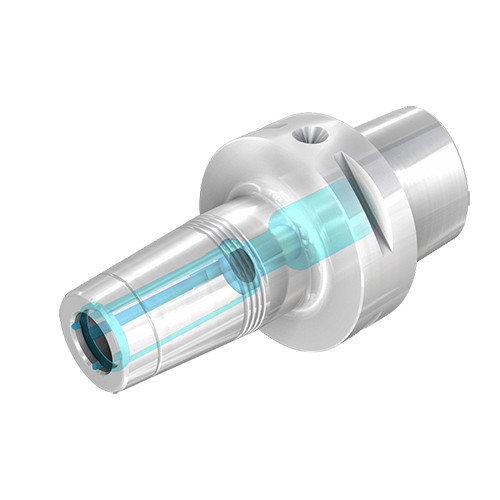

C6 SRKIN 5/16X3.150 CX
Thermal shrink chucks with CAMFIX (ISO 26623-1) tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance

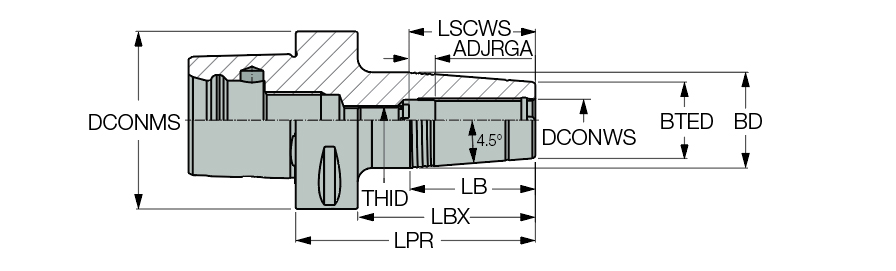

| Connection Diameter Machine Side (DCONMS) | 2.48″ | Protruding Length (LPR) | 3.15″ |
| Connection Diameter Workpiece Side (DCONWS) | 0.312″ | Body Length Maximum (LBX) | 2.284″ |
| Shank Size (SS) | 63 | Clamping Length Workpiece Side (LSCWS) | 1.338″ |
| Body Length (LB) | 1-1/2″ | Series/List # | SHRINK |
| Body Diameter (BD) | 1.063″ | Measurement Type | Inch |
| Body Taper End Diameter (BTED) | 0.827″ | Body Material | Steel |
Product Features
| Family Description | Thermal shrink chucks with CAMFIX (ISO 26623-1) tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance | Country of Origin | Israel |
| Remarks | Use only inductive heating device for SRKIN holders ISCAR cannot guarantee an unbalance value less than 1 gr x mm For shrink units information, Click on More Info Preset screw CX allows supply of coolant via JET groove - do not remove |
Shipping Info
Package Weight
2.271
