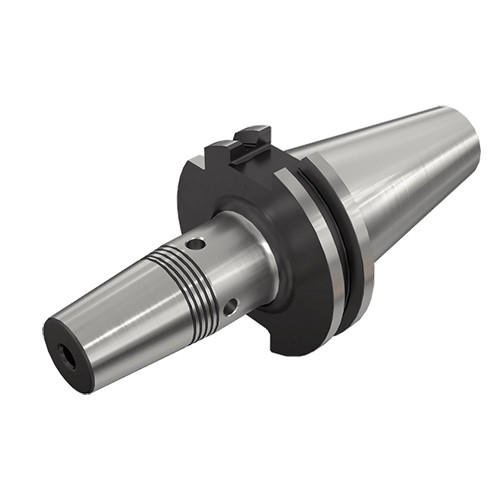

DIN69871 40 SRKIN 6X80
Thermal shrink chucks with integral DIN 69871 form AD taper shank for solid carbide HSS and steel tools with h6 tolerance.

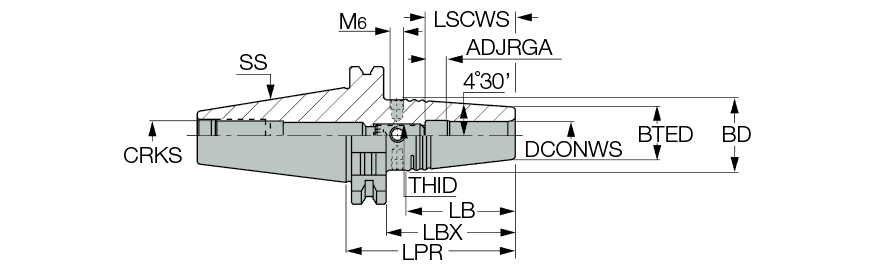

| Connection Diameter Machine Side (DCONMS) | 40 mm | Shank Standard | DIN69871 |
| Connection Diameter Workpiece Side (DCONWS) | 6 mm | Series/List # | SHRINK |
| Shank Size (SS) | 40 | Measurement Type | Metric |
| Body Length (LB) | 38 mm | Tool Type | DIN 69871 |
| Protruding Length (LPR) | 80 mm | Body Material | Steel |
| Overall Length (OAL) | 148.4 mm | Connection Code Machine Side (CCMS) | DIN69871 |
Product Features
| Family Description | Thermal shrink chucks with integral DIN 69871 form AD taper shank for solid carbide HSS and steel tools with h6 tolerance. | Country of Origin | Israel |
| Remarks | Use only inductive heating device for SRKIN holders ISCAR cannot guarantee an unbalance value less than 1 gr x mm For shrink units information, Click on More Info |
Shipping Info
Package Weight
2.392
Related Documentation
