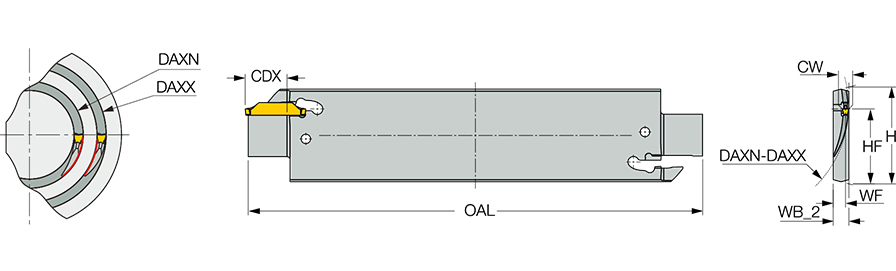

Shank Height (H) | 1.26″ | Overall Length (OAL) | 5.906″ |
Cutting Depth Maximum (CDX) | 0.551″ | Application | | Face Grooving | Face Grooving Along Shaft | |
Cutting Width (CW) | 0.079″ | Tool Type | Face Grooving Tools |
Cutting Direction (HAND) | Neutral | Body Material | Steel |
Axial Groove Outside Diameter Maximum (DAXX) | 5.12″ | Functional Width (WF) | 0.173″ |
Axial Groove Outside Diameter Minimum (DAXN) | 3.94″ | Measurement Type | Inch |

Product Features
Family Description | Face grooving blades | Country of Origin | Israel |
Shipping Info
Package Weight
0.366
