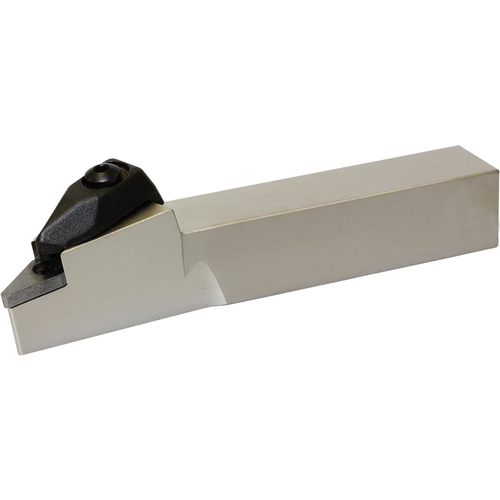

DVLNR 2020K16 INDEX TURN
Alternate Manufacture # DVLNR2020K16

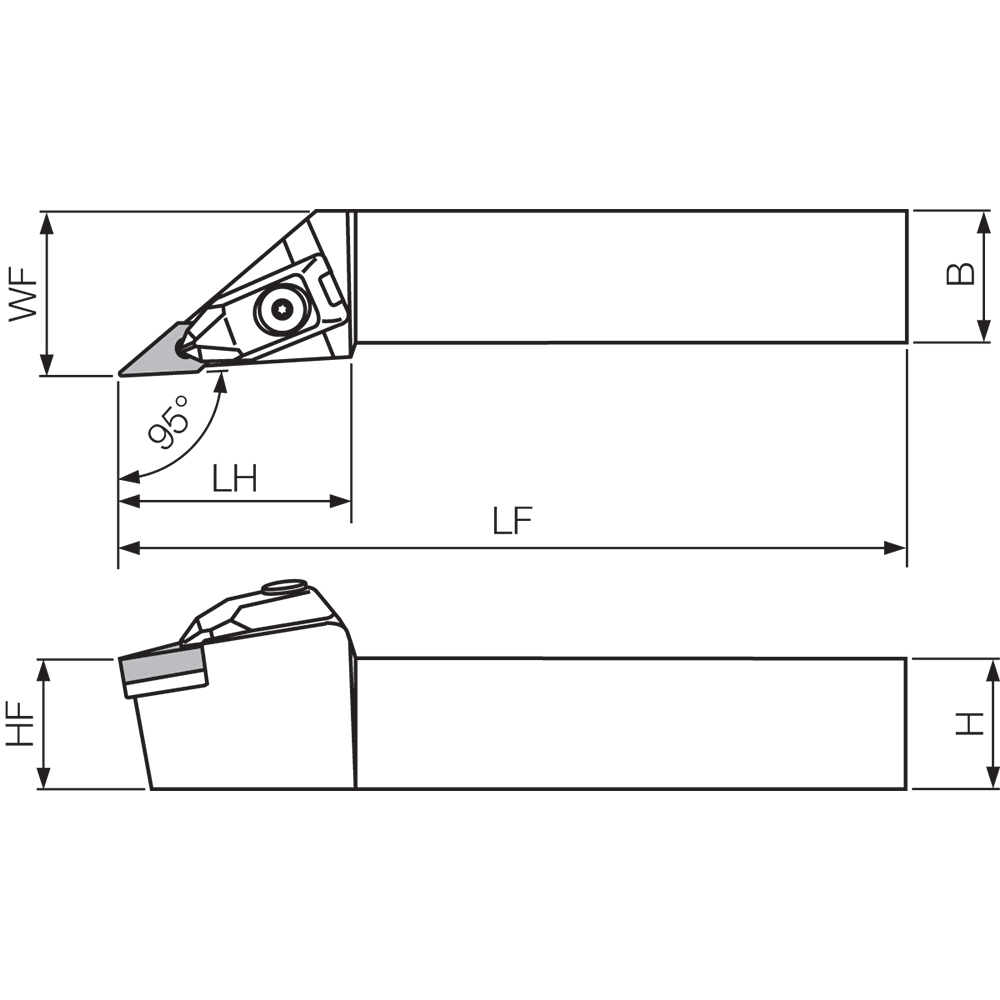

| Shank Height (H) | 20 mm | Application | External Turning | Copying |
| Shank Width (B) | 20 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 125 mm | Rake Angle Radial (GAMF) | -9 Degrees |
| Head Length (LH) | 45 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 9.53 mm | Clamping System | Double Clamp |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | VN_A33… | VN_G33… | VN_M33... | Series/List # | DVLN |
Product Features
| Family Description | Alternate Manufacture # DVLNR2020K16 | Country of Origin | USA |
Shipping Info
Package Weight
.8955
