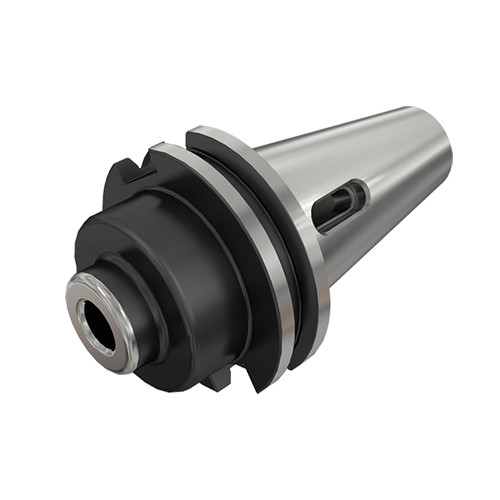

CAT50 MT 3X2.500
DIN 6383 Morse taper adapters with tang DIN228-2 form D and Caterpillar tapered shanks.

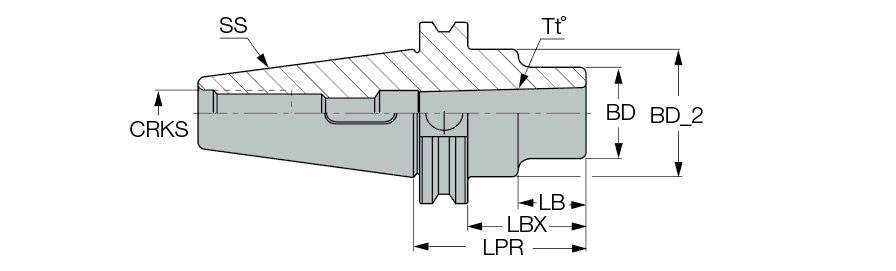

| Shank Size (SS) | 50 | Connection Diameter Workpiece Side (DCONWS) | 3MT |
| Protruding Length (LPR) | 2-1/2″ | Connection Retention Knob Thread Size (CRKS) | 1-8 |
| Body Length (LB) | 1.12″ | Tool Type | DIN 69871 |
| Body Diameter (BD) | 2.752″ | Measurement Type | Inch |
| Connection Size Work Piece Side (DCONWS) | #2 | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 50″ | Connection Code Machine Side (CCMS) | CAT |
| Application | CAT50 |
Product Features
| Family Description | DIN 6383 Morse taper adapters with tang DIN228-2 form D and Caterpillar tapered shanks. | Country of Origin | Turkey |
Shipping Info
Package Length
8.50000
Package Width
5.00000
Package Height
5.00000
Package Weight
7.174
