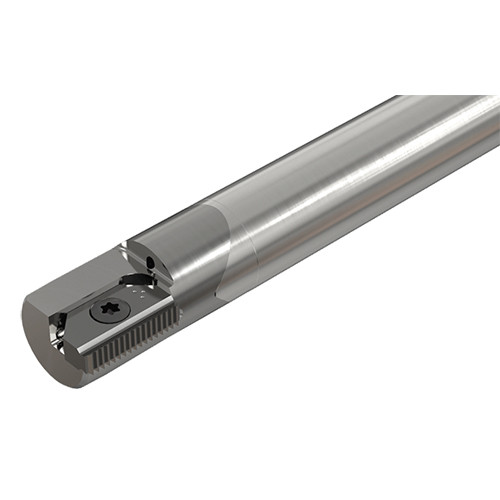

MTE D0.62-1-C.500C-14
Indexable threading endmills with long cylindrical carbide shanks and coolant holes.

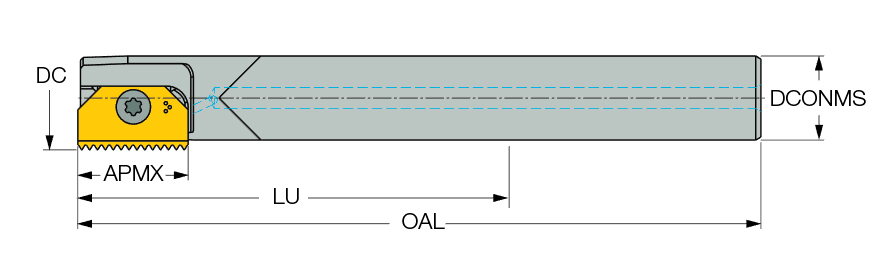

| Cutting Diameter (DC) | 0.62″ | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | | External Thread Milling | Internal Thread Milling | |
| Depth of Cut Maximum (APMX) | 0.551″ | Cutting Position | External |
| Overall Length (OAL) | 7.05″ | Tool Type | Indexable thread mills |
| Flute Count (NOF) | 1 | Measurement Type | Inch |
| Shank Type | Round | Grade | 3102179 |
| Body Material | Steel | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Indexable threading endmills with long cylindrical carbide shanks and coolant holes. | Country of Origin | Israel |
| Remarks | For holders with a long overhang, reduce the cutting speed and feed rate, between 20 to 40% (depending on workpiece, material, pitch and overhang) |
Shipping Info
Package Weight
0.804
