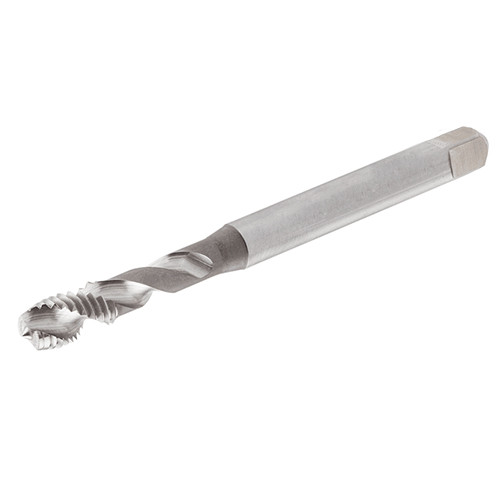

TPS UNC-3/8-16-M HE
Spiral Flute Tap; 3/8″ × 1.593 mm - 16 Threads/" ; 3.937″ OAL ; 3 FL ; HSS ; Uncoated ; D6 ; Series 299
| Thread Diameter Size (TDZ) | 3/8″ | Coating | Uncoated |
| Thread Pitch (TP) | 1.593 mm | Flute Type | Spiral |
| Threads per Inch (TPI) | 16 Threads/" | Style | DIN 371 |
| Thread Standard | THFT | | fmax | 3 |
| Overall Length (OAL) | 3.937″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 0.63″ | Grade | HE |
| Usable Length (LU) | 1.54″ | d max | 3/8″" |
| Connection Diameter Machine Side (DCONMS) | 0.354″ | ToolTypeName | Machine Blind Hole Taps |
| Flute Count (NOF) | 3 | L125 | 3.937″ |
| Flute Helix Angle (FHA) | 40 Degrees | Thread Form Type (THFT) | UN60 |
| Cutting Edge Material | HSS | Series/List # | 299 |
| Thread Tolerance Class (TCTR) | D6 | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Standard | DIN 371 | Body Material | HSS |
| Tool Type | Machine Blind Hole Taps | Drive Size (DRVS) | 0.276″ |
| Chamfer | 2.5P-3P | Thread Size | 3/8 - 16 |
Product Features
| Family Description | HSS spiral flute machine taps unified coarse threads, for a wide range of materials. | Country of Origin | Korea |
Shipping Info
Package Weight
0.110
