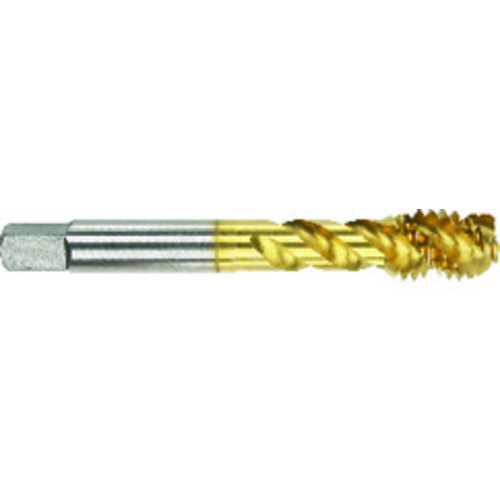

‎1-1/8″ - 7 4-Flute, H4 Series/List # 2091G Spiral Flute Tap

Item # MT3594524

UNSPSC: 23241615

Brand: Morse Cutting Tools

MFG#: 94524

UPC #: 01029828

Quantity Available

Virtual Catalog

Thread Diameter Size (TDZ)

‎1-1/8″

Thread Tolerance Class (TCTR)

Threads per Inch (TPI)

Chamfer

Semi-Bottoming

Overall Length (OAL)

‎5-7/16″

Coating

TiN

Thread Cutting Part Length (THL)

1.143″

Flute Type

Spiral-48 Degree

Flute Count (NOF)

Measurement Type

Inch

Cutting Edge Material

HSS

Series/List #

2091G

Product Features

Remarks

ShearTapô• ShearTapô for Stainless Steel & Carbon Steel up to 35Rc hardness.• CNC Style enchances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap and the workpiece.• Semi-Bottoming Style are designed to lift the chips sout of the hole in blind hole tapping, eliminating chip evacuation problems which can result in damaged threads and broken taps. They will also bridge opeings, keyways and other interruptions in the tapped hole.• TiN Coating - Titanium Nitride increases wear resistance, reduces firiction and galling, reduces tapping torque, improves thread quality, and allows increased cutting speeds. Productivity and tool life are improved.

Country of Origin

USA

Shipping Info

Package Length

4.75000

Package Width

1.75000

Package Height

1.75000

Package Weight

0.9
