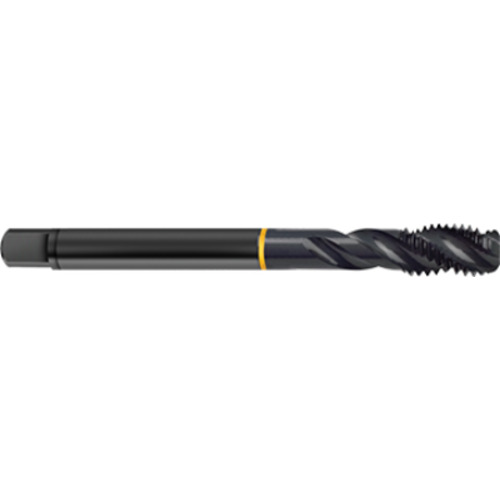

#2 - 56 UNC 3-Flute, H2 Semi-Bottoming Series/List # 4407 Spiral Flute Tap
Additional Tariff Surcharge of 6.6 %
| Thread Diameter Size (TDZ) | #2 | Thread Tolerance Class (TCTR) | H2 |
| Threads per Inch (TPI) | 56 | Chamfer | 2-3 Form C |
| Thread Standard | UNC | Coating | Steam Oxide |
| Overall Length (OAL) | 1.752″ | Flute Length | 0.1969″ |
| Thread Cutting Part Length (THL) | 0.441″ | Flute Type | Spiral |
| Usable Length (LU) | 0.441″ | Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Machine Screw |
| Flute Helix Angle (FHA) | 40 Degrees | Series/List # | 4407 |
| Cutting Edge Material | HSSE |
Product Features
| Country of Origin | DE |
Shipping Info
Package Length
3.50000
Package Width
.39200
Package Height
.35800
Package Weight
.010
