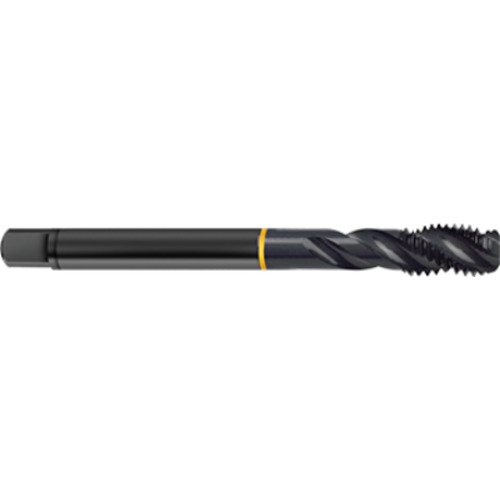

| Thread Diameter Size (TDZ) | 3/8″ | Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 24 | Chamfer | 2-3 Form C |
| Thread Standard | UNF | Coating | Black Oxide |
| Overall Length (OAL) | 2.941″ | Flute Length | 0.4331″ |
| Thread Cutting Part Length (THL) | 0.433″ | Flute Type | Spiral |
| Usable Length (LU) | 1.456″ | Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.381″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 40 Degrees | Series/List # | 4409 |
| Cutting Edge Material | HSSE |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Length
3.22830
Package Width
.39370
Package Height
.47240
Package Weight
0.05
