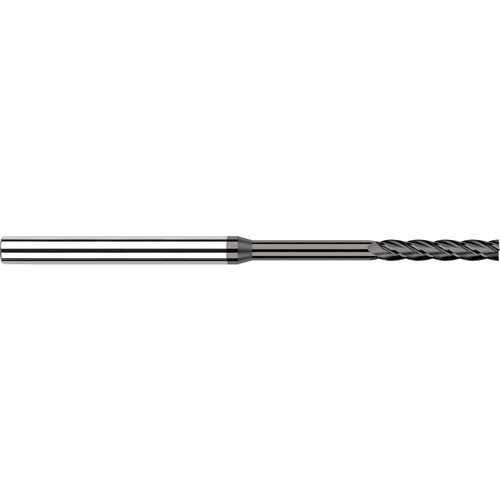

Diamond End Mills for Non-Ferrous Materials - CVD Diamond - 0.0470″ (3/64″) Cutter Diameter × 0.2500″ (1/4″) Length of Cut × 0.4800″ Reach Carbide Square End Mill, 4 Flutes, CVD Diamond Coated
| Cutting Diameter (DC) | 3/64″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 0.48″ |
| Depth of Cut Maximum (APMX) | 1/4″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 2-1/2″ | Length Group | Long Reach |
| Cutting Edge Material | Carbide | Flute Type | Long |
| Coating | CVDDIA | Decimal Equivalent | 0.046875″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
Product Features
| Country of Origin | United States |
Shipping Info
Package Weight
0.016
