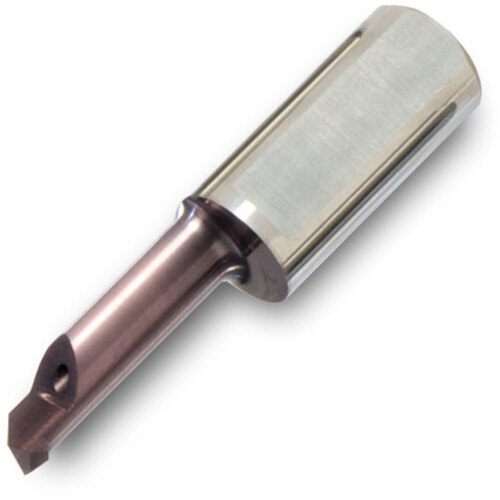

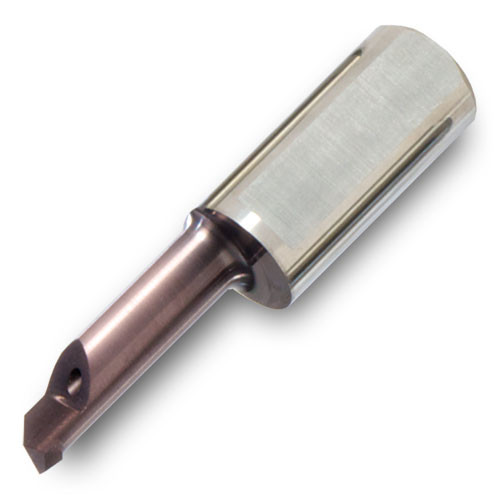

MINNR07-140100D060 TT9030
| Threads per Inch Minimum (TPIN) | 20 | Measurement Type | Inch |
| Threads per Inch Maximum (TPIX) | 24 | Overall Length (OAL) | 1.181″ |
| Functional Width (WF) | 0.071″ | Minimum Bore Diameter (DMIN) | 0.236″ |
| Cutting Direction (HAND) | Right Hand | Grade | TT9030 |
| Cutting Edge Material | Carbide | Cutting Length | 0.59″ |
| Connection Diameter Machine Side (DCONMS) | 0.276″ | Internal/External | Internal |
| Application | | Ext. Undercut | | Body Material | Steel |
| Coating | TiAlN |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.028
