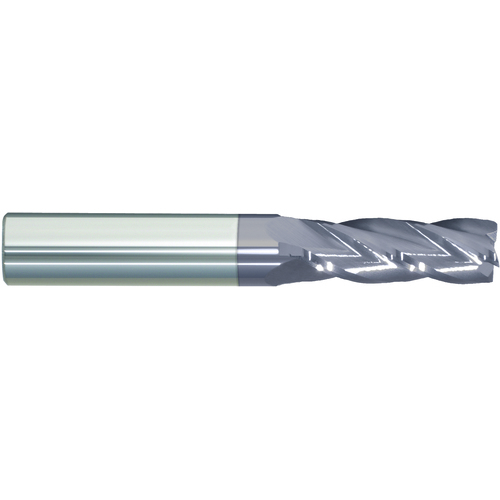

7/32″ × 1/4″ × 5/8″ × 2 1/2″ 4 Flute Single End Carbide Finishing Center Cutting End Mill-ALTiN Series/List #5943T
| Cutting Diameter (DC) | 7/32″ | Usable Length (LU) | 5/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Application | Finishing |
| Depth of Cut Maximum (APMX) | 5/8″ | Tool Type | Single End |
| Overall Length (OAL) | 2-1/2″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Style | Finishing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.2188″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5943T |
| End Shape | Square |
Product Features
| Remarks | •Solid Carbide 4-Flute Single End Mills •TiALN Coated Regular Length | Country of Origin | USA |
Shipping Info
Package Length
3.10000
Package Width
.50000
Package Weight
0.066
