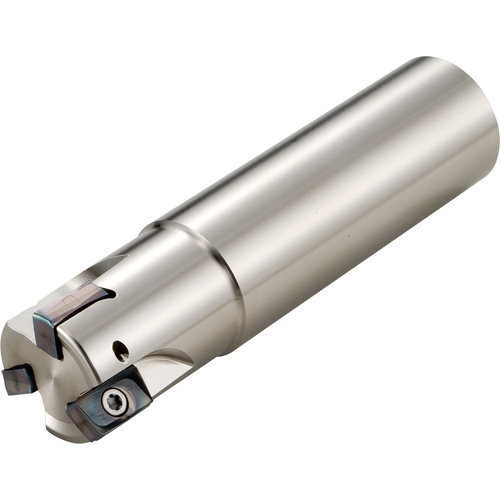

* MEW1250W125-15-3T 1.25 INDX EM
Alternate Manufacture # MEW1250W125153T

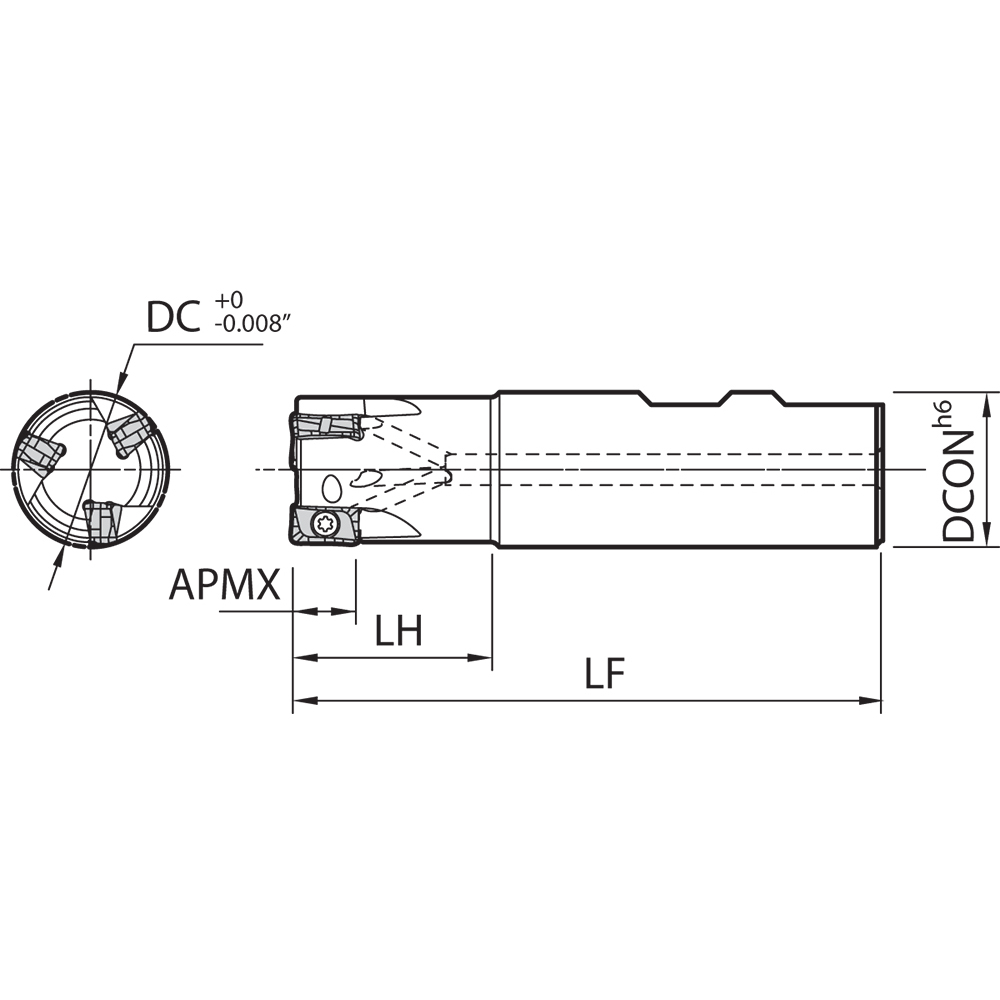

| Cutting Diameter (DC/DCX) | 1-1/4″ | Tool Type | End Mill |
| Cutting Diameter (DC) | 1-1/4″ | Usable Length (LU) | 0.5906″ |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldone | Style | MEW |
| Application | Facing | Shouldering | Slotting | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Angle | 90 Degrees |
| Master Insert Identification (MIID) | LOMU150504ER-GM | LOMU150508ER-GM | LOMU150510ER-GM | LOMU150512ER-GM | LOMU150516ER-GM | LOMU150520ER-GM | LOMU100408ER-SM | LOMU150508ER-SM | LOMU100408ER-GH | LOMU150508ER-GH | Series/List # | M-FOUR |
| Head Length (LH) | 1.663″ | Measurement Type | Inch |
Product Features
| Family Description | Alternate Manufacture # MEW1250W125153T | Country of Origin | JP |
Shipping Info
Package Weight
.9999
